CKD-N Series CNC High Accuracy Lathe 25Tons Load is controlled by the CNC system and can turning the processing of the out cylinder, end face, cone surface, inner hole, curved surface and various threads of various rotating parts.

We will design and develop the most cost-effective Heavy Duty Horizontal CNC Lathe 40Tons Load, Oil Cylinder Special CNC Lathe, Four Axis CNC Deep Hole Gun Drilling Machine for you at your acceptable cost. Best efforts might be made to offer you the ideal service and products. We have a complete quality inspection center, which carefully inspects the products many times to ensure the quality. With our thoughtful after-sales service and tangible prices, we have won universal praise and trust from customers, and our sales volume has continued to achieve breakthroughs, achieving continuous success. Our company accumulates strength in the ever-changing industry structure.

CKD-N Series CNC High Accuracy Lathe 25Tons Load is controlled by the CNC system and can turning the processing of the out cylinder, end face, cone surface, inner hole, curved surface and various threads of various rotating parts. It has high precision, high power, high rigidity and automation. High degree characteristics. Its main components and structure have been optimized, and it is the first choice for processing shafts, disks, sleeves, characteristic surfaces and screw workpieces.

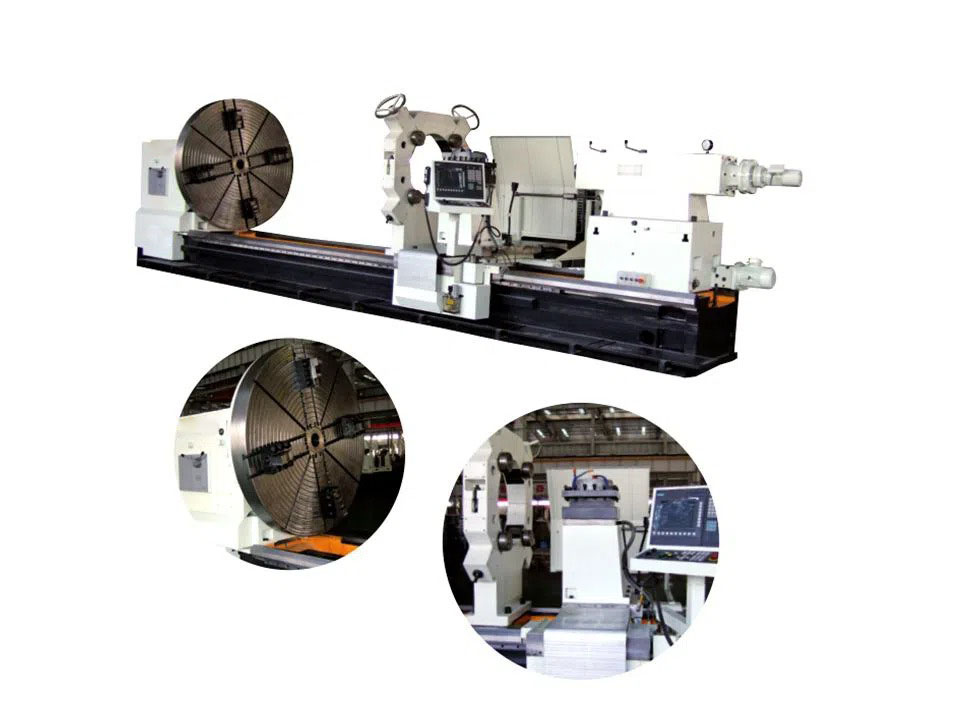

CNC High Accuracy Lathe


The model of machine

CKD61125N

CKD61140N

CKD61160N

CKD61180N

CKD61200N

The main parameter

max weight between centers

kg

25000

width of the bed

mm

1100

max. swing diameter over bed

mm

1300

1500

1700

1900

2100

max.swing diameter over carriage

mm

850

1050

1250

1450

1650

max .length of workpiece

mm

1000  2000 3000 4000 5000 6000-16000(mm)

headstock parameter

diameter of front bearing

mm

280

Spindle bore diameter

mm

100

Taper of spindle bore


 Metric 140#

kinds of spindle speed


 manual four grade and stepless

Range of spindle speed


2-200r/min

Main motor power

Kw

55Kw

The feeding system parameter

Nc system KND Siemens or fanuc CNCsystem

The torque of longitudinal servo motor

N.m

48

The torque of transversal servomotor

N.m

32

The section of tools


60X60

The position no.of tool post


vertical 4 postion

Repeat ability positioning accuracy of toolpost


0.01mm

The longitudinal rapid speed

mm/min

4000

The transversal rapids peed

mm/min

4000

The longitudinal feeding speed

mm/min

1-2000

The transversal feeding speed

mm/min

1-2000

The parameter of tailstock

Diameter of tailstock sleeve

mm

φ280

Taper of tailstock sleeve


1:7

Travel of tailstock sleeve

mm

300mm


Accessories

Model


CKD61125N/40N

CKD61160N

CKD61180N/CKD61200N

Chuck

standard

φ1250mm

φ1400mm

φ1600mm


optional

φ1400mm, φ1600mm, φ1800mm, φ2000mm

Steady rest

standard (mm)

φ120mm-φ470mm

φ400mm-φ700mm



optional (mm)

φ400mm-φ700mm

φ120mm-φ470mm

Tool post

standard

AK23440X4



optional

chosen by user
