Flat Bed Horizontal High Rigidity High Precision CNC Turning Machine Metal Lathe
CKD6150 Series CNC Horizontal Lathe, include CKD6150S/1, CKD6150HS, CKD6150S, CKD6150ES are designed for semi-finish and finish machining plate,bush and shaft workpiece with two coordinates continuous control.
We strive to accelerate quality upgrade of our Two Axis Deep Hole Gun Drilling Machine, Heavy Duty Lathe Machine, CNC Heavy Duty Lathe, promote the whole process to reduce costs and increase efficiency, and achieve sustained profitability. We take the needs of our customers as our guide, respect talents, constantly improve our strength and level, and improve our service level and quality. We adhere to the development model of the whole industry chain to achieve full traceability management from raw materials to end consumption. We expect to provide products that meet the needs of the times through continuous and fruitful work.

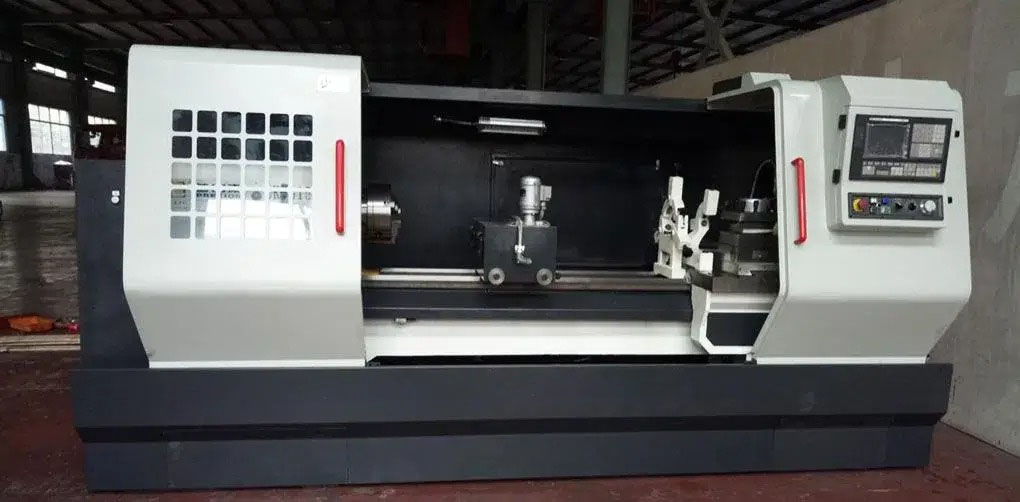

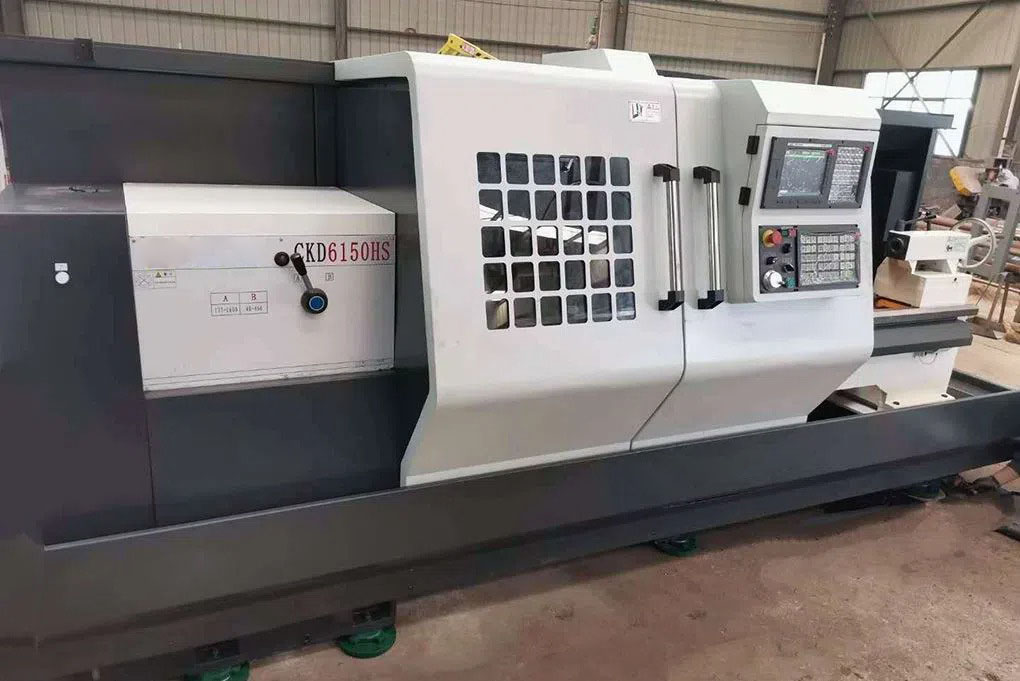

CKD6150 Series CNC Horizontal Lathe, include CKD6150S/1, CKD6150HS, CKD6150S, CKD6150ES are designed for semi-finish and finish machining plate,bush and shaft workpiece with two coordinates continuous control. It is adopts high power low noise servo motor and precision ball screw on X, Z axis,so the machine has high positioning accuracy, good stability and high reliability. The machine is equipped four-position automatic rotary turret with intermittent automatic lubrication which the user can adjust according to the condition.It fully guarantee the rail surface lubrication and improve the accuracy of machine effectively. The machine has double door and semi protective structure,so it has beautiful shape and easy to operate.
Specification
Specification | CKD6150S/1 | CKD6150HS | CKD6150S | CKD6150ES | |
Capacity | Max.swing diameter over bed | Ф520 mm | |||
Max.swing diameter over cross slide | Ф300 mm | ||||
Two center distance | 1600mm | ||||
Maximum cutting length | 1500mmm | ||||
Width of bed | 400 mm | ||||
spindle | Spindle nose | C6 | D8 | D8 | A2-6 |
Spindle bore diameter | Ф52 | Ф102 | Ф80 | Ф67 | |
Taper of spindle bore | MORSE6# | Ф110mm 1:20 | Ф100mm 1:20 | Ф80mm 1:20 | |
Range of spindle speed | 12-1000r/min 24 kinds | 37-1600r/min | 30-2000r/min | maximum speed of motorized spindle is 4500r / min, and the speed limit of standard chuck is 2500r / min | |
Feeds | Rapid moving speed X-axis | 3000 mm/min | 6000 mm/min | ||
Rapid moving speed Z-axis | 6000 mm/min | 8000 mm/min | |||
Z Min.set unit of longtudinat | 0.001 mm | ||||
X Min.set unit of transverse | 0.001 mm | ||||
CNC System | Fanuc | ||||
Tail Stock | Taper of tailstock sleeve | Morse No.5 | |||
travel of tailstock sleeve | 150 mm | ||||
Diameter of tailstock sleeve | Ф75 mm | ||||
Tool Past | Form | Vertical 4 station motor-driven | Standard is Vertical four station electric turret
| ||
Setting accuracy | 0.005mm | ||||
model | LD4120 | ||||
Motors | Main motor Power | 7.5Kw | 7.5Kw Servo motor made in china | 7.5Kw Servo motor made in china |
11Kw |
Dimension and weight of machine tool
length | Swing diameter over bed | Over all dimension | net weight (kg) |
1000mm | Ф500 | 3150×1600×1810 | 3350 |
1500mm | Ф500 | 3650×1600×1810 | 3450 |
2000mm | Ф500 | 4150×1600×1810 | 3550 |
3000mm | Ф500 | 5150×1600×1810 | 3800 |
Standard Accessories
No | Name | Specification | QTY | Note |
1 | tool post | Four station electric vertical tool post | 1set | |
2 | chuck | K11265/D8 | 1set | S, HS |
K11250A | 1set | S/1 | ||
K11250 A2-6 | 1set | ES | ||
3 | center sleeve | Morse 5 | 1set | Special order |
4 | center | Morse 5 | 1set | For tailstock |
5 | steady rest | Φ20-Φ130mm | 1set | 1500mm and above |
6 | follow rest | Φ20-Φ80mm | 1set | 1500mm and above |
Document with Machine for One Machine Tool
Content | Document | Number | Note |
1 | Operational manuals | 1 | Mechanical and electrical |
2 | Acceptance of certificate | 1 |
|
3 | Packing list | 1 |
Over the years, our company has established a scientific management and advanced technical testing team, we rely on excellent equipment and rich production experience to ensure the quality of Flat Bed Horizontal High Rigidity High Precision CNC Turning Machine Metal Lathe. The company actively invests a lot of resources to effectively utilize resources from three levels: institutional, behavioral and material levels for the construction of business operation. We emphasize the interactive effect with customers, striving to build a win-win platform.
