Universal Horizontal Gap-Bed Light-Duty Turning Lathe Machine

Universal Horizontal Gap-Bed Light-Duty Turning Lathe Machine

CD series is a kind of horizontal lathe. CD series lathe is a export type lathe, we can do this lathe with 1m to 8m center distance. Workpiece load is about 2tons.it can be used for machining all kinds of metal parts. It is especially suitable for mass production of machining inside and outside cylinder surface, end surface, metric and inch thread etc.

In recent years, our Deep Hole Honing Cutting Tool, Universal Horizontal Lathe, Double Axis CNC Deep Hole Gun Drilling Machine is of stable quality, rapidly expanding production and steadily increasing market share. In the market, both quality and sales are in the forefront of the industry. We combine professional technology, efficient work and a highly qualified team. Relying on our own technology development and innovation, we are always committed to providing our customers with the best quality products and services and creating maximum benefits for them. In order to meet the diversified needs of the market, our company has changed from mass production mode to multi variety and small batch production mode.

CD series lathe is a export type lathe, we can do this lathe with 1m to 8m center distance.

workpiece load is about 2tons.


This horizontal lathe used for machining various kinds of parts, such as inside and outside cylinder surface, end surface, metric and inch thread etc.


Main Features

1.Dynamic sliding bearing is adopted on spindle nose. The bearings have better precision and obtained state patent.

2.The spindle has 18 manual speed grade. The speed rang of spindle is 12-1000 r/min. Large spindle bore (Ф120 mm).

3.The lathes are supplied with two systems both in metric and in inch.

4.Electric system of different frequency and voltage can be designed to meet the requirements of users.

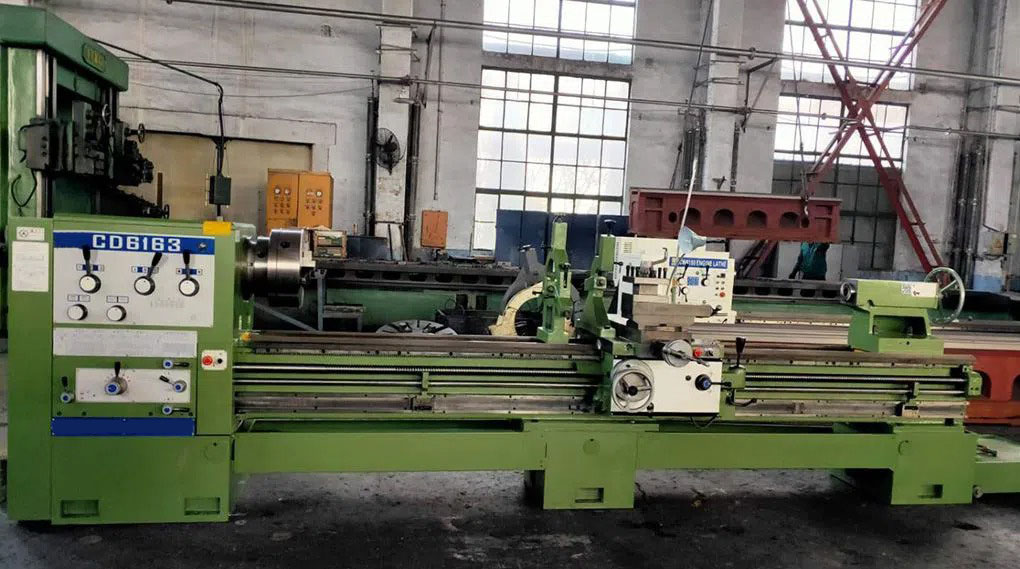

Universal Horizontal Lathe

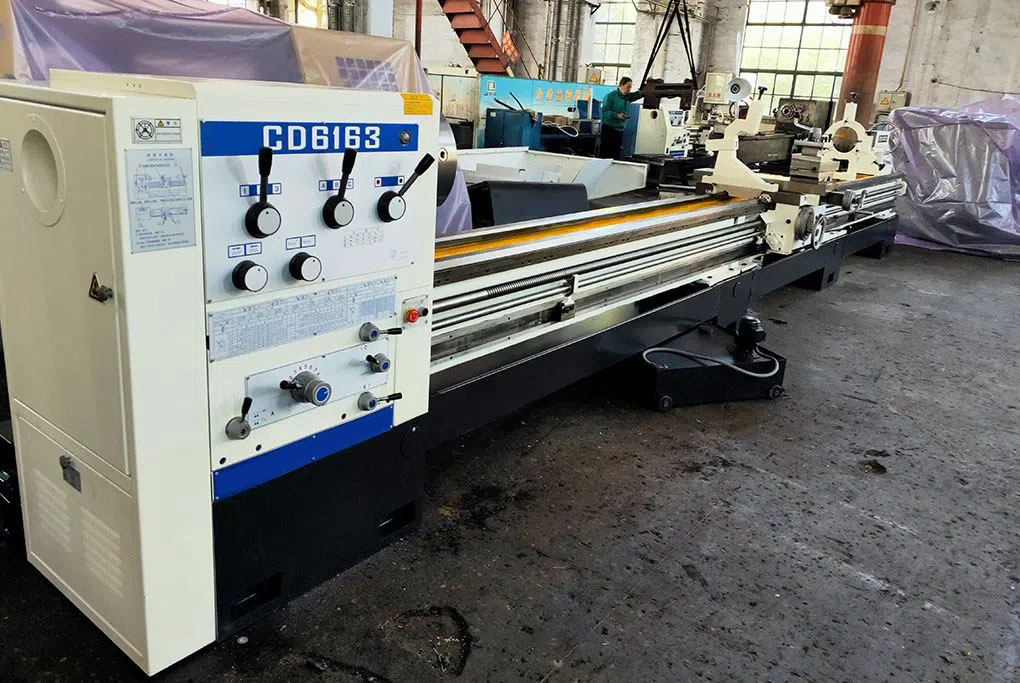

Universal Horizontal Lathe Machine

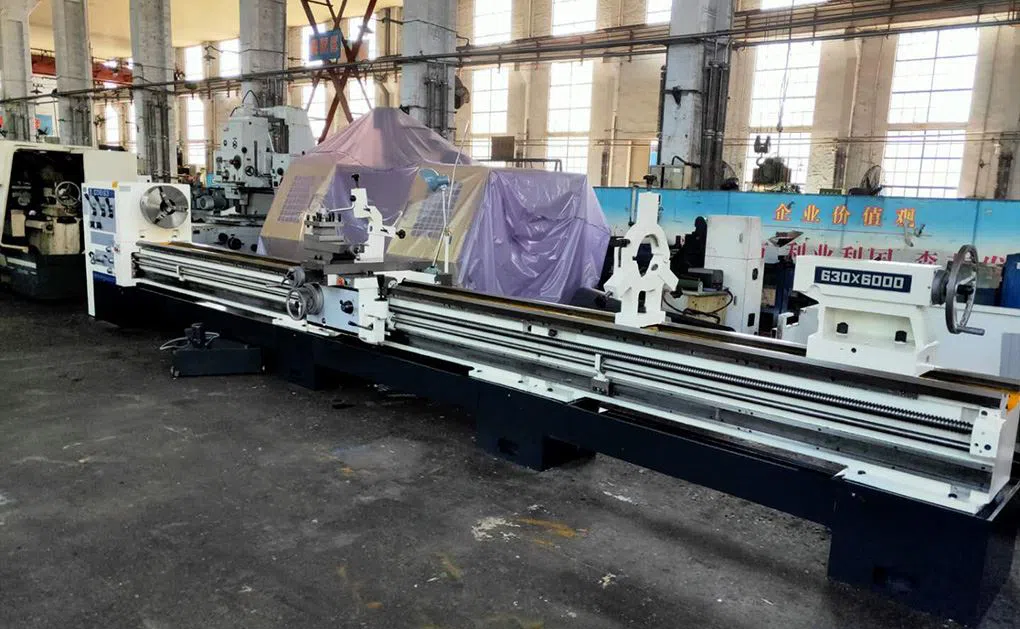

Horizontal Lathe Machine


Technology Parameter and Accessory

Models

CD6163/CD6263

CD6180/CD6280

Capacity

Max. swing diameter over bed

Ф630

Ф800

Max. swing diameter over cross slide

Ф390

Ф550

Max. swing diameter over gap

Ф830

Ф1000



only (CD6263)

(CD6280)

Width of bed

410mm

Max distance between two center

1000mm--- 8000mm

Spindle

Spindle nose

D11

Spindle bore diameter

Ф120mm

Taper of spindle bore

1:20

Range of spindle speed

12-1000r/min 18Kinds

Feeds

Longitudinal feeds range

0.082-1.59mm/r

35Kinds

Transversal feeds range

0.027-0.522mm/r

35Kinds

Metric threads range

1-192mm

57Kinds

Inch threads range

2-24tooth /inch

31Kinds

Module threads range

0.25-48mm

40Kinds

Pitch threads range

1-96 tooth /inch

36Kinds

Longitudinal feeds range

0.082-1.59mm/r

35Kinds

Longitudinal feeds range

0.082-1.59mm/r

35Kinds

Transversal feeds range

0.027-0.522mm/r

35Kinds

Metric threads range

1-192mm

57Kinds

Inch threads range

2-24tooth /inch

31Kinds

Module threads range

0.25-48mm

40Kinds

Pitch threads range

1-96 tooth /inch

36Kinds

Tailstock

Taper of tailstock sleeve

Morse No.5

Travel of tailstock sleeve

250mm

Diameter of tailstock sleeve

Ф100mm

Motors

Main motor power

7.5kW

Rapid motor power

0.25kW

Coolant pump power

0.125kW


Standard Accessories

1. Three jaw chuck 380mm / One set

2. Center bush / One piece

3. center / Two pieces

4. Oil gun / One piece

5. Tools / One set

6. Foundation screws / One set

7. Wedge nuts / One set

8. Steady rest 20-200 / One set

9. Follow rest 20-110 / One set


Optional

1. Face plate

2. Drive plate


Document

operational manual( chinese one set and english one set, include packing list and certificate of acceptance)


Over All Dimensions and Weight

Length

CD6163/CD6263

Floor space

L×W×H

Packing dimension
L×W×H

Net weight

 Gross weight

1000

2566×1220×1430

2880×1430×1860

2680

3460

1500

3155×1220×1430

3380×1430×1860

2800

3620

2000

3655×1220×1430

3880×1430×1860

2920

3780

3000

4655×1220×1430

4880×1430×1860

3160

4100

4000

5655×1220×1430

5880×1430×1860

3400

4420

5000

6655×1220×1430

6880×1430×1860

3640

4740

6000

7655×1220×1430

7880×1430×1860

3880

5060

8000

9655×1220×1430

9880×1430×1860

4360

5700



 Length

  CD6180/CD6280

 Floor space

L×W×H

 Packing dimension
     L×W×H

 Net weight

 Gross weight

1000

2655×1220×1545

2880×1430×1970

2680

3460

1500

3155×1220×1545

3380×1430×1970

2800

3620

2000

3655×1220×1545

3880×1430×1970

2920

3780

3000

4655×1220×1545

4880×1430×1970

3160

4100

4000

5655×1220×1545

5880×1430×1970

3400

4420

5000

6655×1220×1545

6880×1430×1970

3640

4740

6000

7655×1220×1545

7880×1430×1970

3880

5056

8000

9655×1220×1545

9880×1430×1970

4360

5700


Packing box is export wooden box


After sales service commitment

In general, our machine warranty time is one year.


In order to make our products meet your satisfaction and confidence and strive for the first-class level of after-sales service, we hereby make the following after-sales service commitments to you:


1. You have enjoyed our warranty service since you received our machine tool. Under normal use conditions, our company will replace spare parts for you free within one year.


2. If the machine tool breaks down during the warranty period, please handle it according to the relevant provisions in the relevant precautions in the "operation manual". If the fault cannot be eliminated, please call or write to us. After receiving the notice, we will reply within 48 hours to assist your company to eliminate the fault in time and the machine tool operates normally.


3. After you purchase our products, if you need debugging, we will provide you with debugging services according to the contract, and the installation and debugging expenses are reflected in the business contract.


4. Faults caused by transportation, storage, power supply voltage, environmental problems or failure to operate according to the operating instructions are not within the scope of free warranty.


5. After the warranty expires, our company will repair or replace spare parts for you at the most favorable price. In any case, you will enjoy our lifelong service.



Company Culture

The brand strategy of the enterprise - "quality, service and delivery".


Quality


The quality of machine tool is from signing a contract with the user, receiving the deposit, designing, purchasing, organizing production, product acceptance, after sale. Quality is with circle process. Reliable quality can assure customer good use feeling. Also let me harvest long time develop and cooperation.




Service


The "service" initially proposed is only "after-sales service". In the practice of production and operation, we find that "after-sales service" is one of service. In the process of continuous improvement of the comprehensive strength of enterprises, "service" should include three plates of "pre-sales, in-sales and after-sales", which is a complete service system. Because many customers don't really understand machine tools, are not researchers or machine tool manufacturing experts, we can't sell machine tools like selling pots and bowls. The reality requires us to provide customers with good and perfect consulting services, including technical solutions, and make decisions to guide the market. Therefore, we propose "pre-sales, in-sales and after-sales" Service concept. If we continue to pursue high-quality manufacturing in terms of product quality, coupled with such a complete service system, the brand awareness construction of the enterprise will be successful.




Lead time


Lead time is due to customer use demand, rather than storage or value-added use. In order to make better use of his funds, plant and contract, the customer must deliver the machine tool within the delivery date agreed by both parties. Failure to deliver on time may lead to the suspension of the whole process or the failure of the project, affect the customer's production contract, and even affect their production and operation decisions, especially some key decisions. Therefore, the delivery date is very important for the construction of our brand, which involves the reputation of an enterprise.


Based on the above three aspects of quality, service and delivery date, we propose and position the Trinity brand strategy of "quality, service and delivery date", which is in line with the current development situation and long-term development needs of the enterprise.








We usually follow the tenet of customer-oriented, details-focused for Universal Horizontal Gap-Bed Light-Duty Turning Lathe Machine. Our company is constantly learning, improving ourselves, tapping our potential and making leaps and bounds. The development of circular economy is the fundamental way to realize the transformation of economic growth from high input, high consumption, high pollution and low efficiency.
