Ck5240gx20 Double Column Vertical Lathe

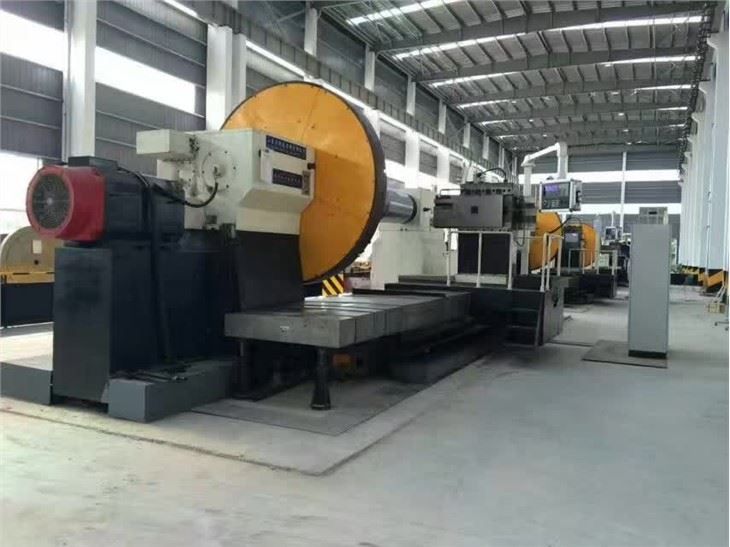

Through on-time logistics delivery, our Heavy Duty Horizontal CNC Lathe 40Tons Load, T2236G Deep Hole Boring Machine, CNC Deep Hole Honing Machine will be delivered to customers quickly and safely. Our company strictly guides production in accordance with the quality system. The products are all selected international high-quality and advanced materials, and the various performances of all products are leading and exceeding the world's advanced level. For a long time, our company has always adhered to the principle of honesty and quality first, so we have established a good reputation. Our company has a large scale in the industry and attracted much attention. We are a group with a strong sense of social responsibility and dedication, committed to creating long-term value for shareholders, employees and customers.

Double Column Vertical Lathe 20tons

The workbench and workbench base adopts the whole casting structure with high strength and low stress casting, so it has enough stiffness, strength and thermal stability. And the casting part willl be by second time aging treatment, so as to eliminate stress and ensure the precision of the machine tool for the long-term stability and stability.

The double column adopts symmetric closed structure, and the design has been through the finite element optimization so that it can guarantee that the gantry framework has enough stiffness and strength, so the stability and accuracy of machine tool has the long-term stability.

The spindle adopts short spindle structure, spindle centering bearing uses double row roller bearings with high accuracy. The workbench adopts constant current hydrostatic guideway, and the guideway has special scraping processing with the carriage, so as to assure the high flatness, high stiffness oil film, strong bearing capacity and without abrasion.

Beams is designed with enough size, height and thickness , this kind of reasonable layout forms can reduced bending deformation by tool post movement and cutting force, so it has the very high stiffness and accuracy stable as a whole.

Tool post is designed as the large cross-section rectangular ram and all inclusive sliding guide rail, so it can assure the strong cutting force, small deformation of ram, and high rigidity of machine tool. Tool post feed movement are realized by servo motor driving the ball screw through the reducer, with high accuracy, precision positioning,and rapid speed.

The common tool post feed is controlled by programmable controller (PLC), feed shaft position and feed speed is shown by liquid crystal display. And we adopt manual pulse tool control the movement of cutting tool, easy and convinent. The CNC system adopts high-performance processor and large screen color LCD screen, high precision, rich feature,and high extension ability.

Features

1.The workbench adopts constant current hydrostatic guideway, which has high working accuracy and strong bearing capacity.

2.The spindle adopts short spindle structure, spindle centering bearing uses double row roller bearings with high accuracy.

3.The main movement adopts AC servo motor or DC motor drive, stepless speed within two level.

4. Tool post uses high rigid rectangular ram with single knief holder structure.

5.Workbench adopts manual four jaw chuck.

6. Machine tool can choose cooling device, automatic chip removal machine, protective device, as optional parts, etc

7. The common tool post is controlled as PLC with LCD screen display, manual pulse tool control the movement of cutting tool.

8. CNC machine can choose domestic or imported numerical control system, also can equip with graing ruler.

9.The tool post can be equipped with milling head or grinding head for multi-usage.

10.The beam guide rail is treated by quenching and grinding processing.

In order to win a larger share in the international market, we will go all out to make our Ck5240gx20 Double Column Vertical Lathe more competitive. We can quickly respond to customer needs and solve customer problems immediately. Our fast and efficient service tenet makes every customer rest assured. Our goal is to create a national brand, and at the same time to catch up with the world's scientific and technological level.
