Big Heavy Duty Conventional Horizontal Lathe (BL-HL-B63B/80A)

We always follow the principle of honesty and trustworthiness to promote our high-quality 2M2125A Deep Hole Honing Machine, CNC Heavy Duty Lathe Machine 32Tons Load, CKD-L Series CNC Horizontal Lathe Machine 10Tons Load to the world. We are able to also provide you with no cost samples to meet your needs. In many years of journey, we have been adhering to the pioneering spirit, forge ahead, and strive to be the first.

CW/CQW Conventional Horizontal Lathes 3Tons Load is suitable for the turning of middle and small size parts of various kinds of steel,cast iron and non-ferrous metal.The machine has features of large power and good rigidity and is suitable for power and high-speed cutting.It can perform to turn end-faces,cylindrical and internal holes of various parts as well as metric,inch,module and pitch threads,it also can undertake the tasks of drilling and boring. Machine spindle speed is infinite of varis speed so as to realize change speed without stop spindle.Speed range is wide and suitable for rough and finish turning.

The bed is made of high strength resin cast iron,the guide-way is hardened by ultra-high frequnency quench and precison groud with properties of good precision-keeping and strong loading capacity.

The safe mechanism in apron can protect the machine to aviod the damage cause by over-loading to ensure the machine safe and reliable.It is equipped with rapid handle on cross and longitudinal direction so tool post can move easily.

The machine has the properties of strong rigidity,large power,high efficiency,good reliability,easy operation and elegant outlook.

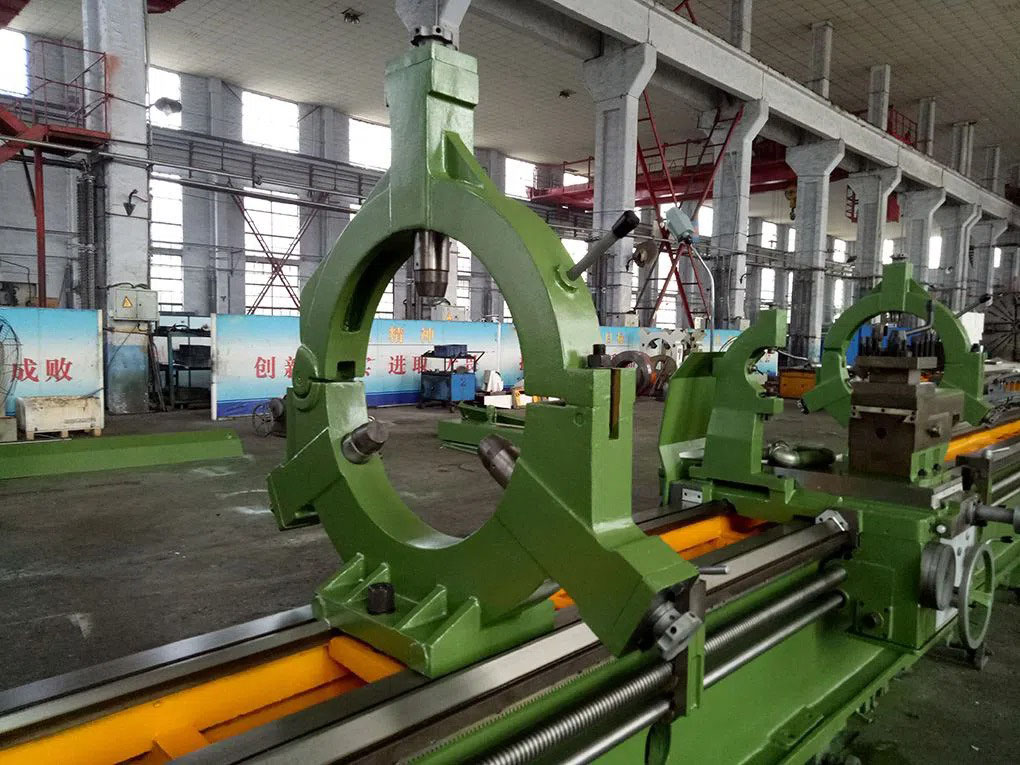

Conventional Horizontal Lathes

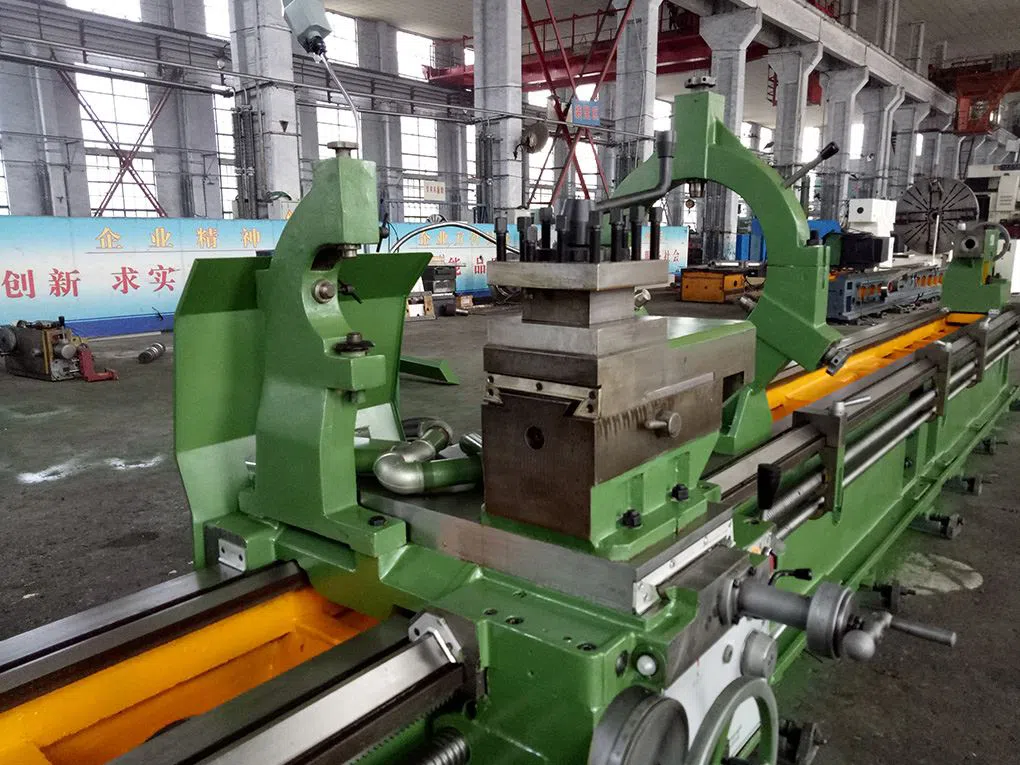

Conventional Horizontal Lathe Machine

Advantage

1.headstock stepless in manual four shift

2.Main motor is china servo motor, easy to operate.easy to change speed

3.high quality casting for long term use

Main Specifications and Features

Specification		Type
		CW6163 CW6263	CW6180 CW6280	CQW61100 CQW62100
Work capacity	Max. swing diameter over bed	630mm	800MM	1000mm
	Max. workpiece length	1-10 M
	Max. swing diameter over slide (small tool post automatic feed)	350mm	510mm (490) mm	710mm (690) mm
	Swing diameter×useful width over gap	800×350mm	1000×350mm	1200×350mm
	Width of bed	600mm
	Loading weight between chuck and center	3T
spindle	Spindle bore	Φ100mm
	Taper of the spindle bore	Metric 120#
	Spindle speed	17-1000r/Min(4 gears, stepless)
	Type of spindle end	Ctype 11
feed	Longitudinal feed range	0.1-12.2mm/R
	transversal feed range	0.05-6.6mm/R
	Rapid moving speed of apron	3.8m/Min
	Metric thread range	1-120mm 47 kinds
	Inch threads range	28-1/2t/Inch 25 kinds
	Module threads range	0.5-60mm 45 kinds
	Pitch threads range	28-1t/Inch 29 kinds
	Tool post transversal travel	449mm
	Top tool post travel	200mm
tailstock	Diameter of tailstock spindle	Φ120mm
	Travel of tailstock spindle	200mm
	Taper of tailstock spindle	Morse 6#
Power parameter	Main motor power	15kW
	Rapid motor power	1.1kW
	Coolant motor power	0.15kW
	General power	22kW

Note:

CW6163/CW6180/CQW61100 without gap

CW6263/CW6280/CQW62100 without gap

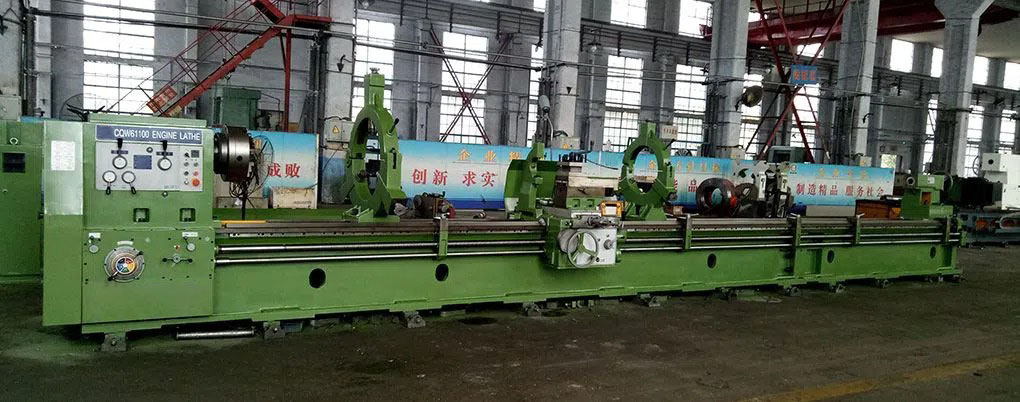

Horizontal Lathes

Horizontal Lathe Machine

Overal size and weight

Distance Between centers	CW6163	CW6180		CQW61100
Distance Between centers	Overal size(L×W×H)	Overal size(L×W×H)	N/W	Overal size(L×W×H)
1000	3000×1400×1290	3000×1400×1370	5.8	3000×1400×1470
2000	4000×1400×1290	4000×1400×1370	6.6	4000×1400×1470
3000	5000×1400×1290	5000×1400×1370	7.4	5000×1400×1470
4000	6000×1400×1290	6000×1400×1370	8.2	6000×1400×1470
5000	7000×1400×1290	7000×1400×1370	9.0	7000×1400×1470
6000	8000×1400×1290	8000×1400×1370	10.2	8000×1400×1470
7000	9000×1400×1290	9000×1400×1370	11	9000×1400×1470
8000	10000×1400×1290	10000×1400×1370	11.8	10000×1400×1470
9000	11000×1400×1290	11000×1400×1370	12.6	11000×1400×1470
10000	12000×1400×1290	12000×1400×1370	13.4	12000×1400×1470

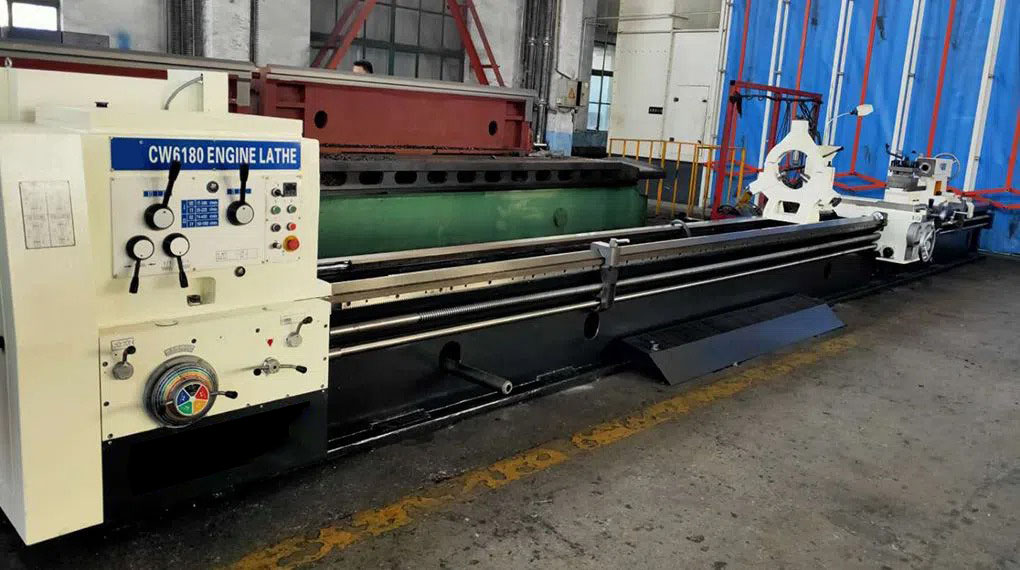

Horizontal Lathe Mchine 3Tons Load

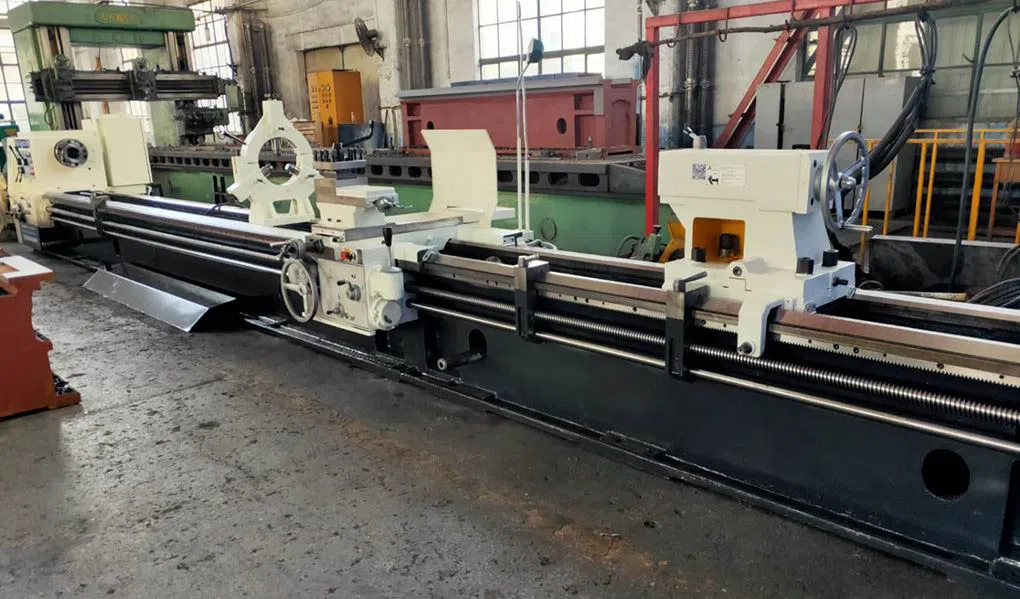

Horizontal Lathe 3Tons Load

Standard accessories

Ф380mm three jaw chuck, one set.

Morse No.6 center one set.

heavy duty live center, one set.

center sleeve one set.

light one set.

coolant device one set.

tools each one set. one set.

For 1500mm or longer than 1500mm lathe,

standard accessories also include:

steady rest 50-300 / one set.(cw6163-cw6180 standard )

Steady rest 260-450 / one set(cqw61100 standard)

follow rest / one set

Optional accessories

500mm four jaw chuck,

630mm four jaw chuck,

800mm four jaw chuck (for CW6180 and CQW61100 lathe),

450mm steady rest (for CW6180 and CQW61100 lathe),

630mm steady rest (for CQW61100 lathe).

To be a result of ours specialty and service consciousness, our enterprise has won an excellent status between buyers all around the globe for Big Heavy Duty Conventional Horizontal Lathe (BL-HL-B63B/80A). We adhere to the development, maintenance and communication of the relevant elements of the quality system to meet the requirements of all customers. Relying on creative R & D team and efficient sales network, we become a new modern enterprise with the advantages of science and technology, management and market.
